Emkay ROPP Cap Sealing Machine

Emkay ROPP Cap Sealing Machine
  • For cap dia size 22 to 38 mm.
  • With A Rotating Hopper with chute to feed the caps automatically in correct position.
  • Sealing Rollers made of hardened & tenpered steel.
  • Feeding of bottles through a synchronised system of star - wheel with indexing mechanism.
  • Adjustable guide rails to take all sizes of bottles.
  • A Turn Table with independent drive on the incoming side.
  • Main drive with 1.5 H.P. Electric Motor and separate drives for Hopper (.25 h.p.) and Sealing Head Assembly (.33 h.p)
  • Capacity 2,000 to 4,000 bottles per hour.
  • Simple to operate with elegant finish and low cost of maintanance.

Inspection Table

  • Inline inspection with independent drive.
  • Incoming bottles bifurcated for 4 operators on opposite direction.
  • Lighting arrangement for visual inspection.
  • Capacity 2,000 to 4,000 bottles per hour.

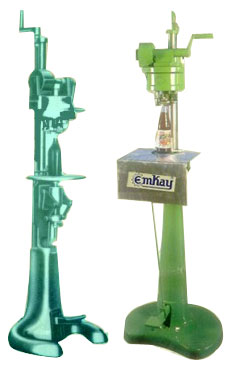

With 1/2 H.P. TEFC type standared make A . C . electric motor provided with rotating head set to ensure perfect and leak proof sealing, suitable hear box drive for wide range of variety and sizes of container, having capacity of cap sizes between 18mm to 70 mm. Adap table for bottle or cans of mamimum 2" to 12" in height and 4" in diameter mounted on heavy duty C.I. stand finished with DUCO paints.
